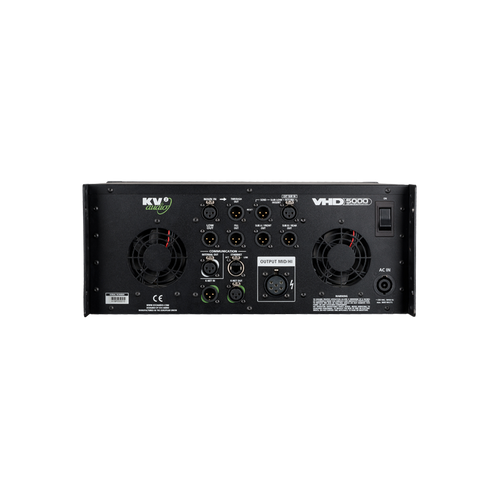

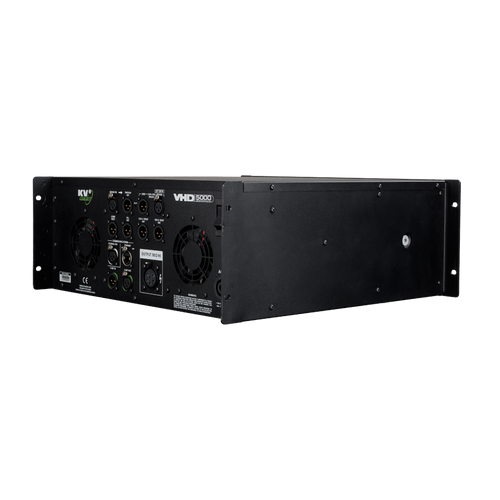

VHD5000
Active Control and Amplification Unit
Active control and amplification unit specifically designed in conjunction with VHD5000S for powering the VHD5 loudspeaker system. The VHD5000 is equipped with many features for easy large scale speaker system use. It features all signal processing, crossover and speaker system protection. All signal processing is executed with KV2 Audio Super Audio Analog circuitry and utilize KV2's industry leading 20MHz sampling for on board time alignment and phase correction for maximum audio quality. The VHD5000 is equipped with multiple delay lines, wideband delay line for VHD5 system delay, ll output delay and two low frequency delay lines for subwoofers.
Features
The Main input, fill-output, and subwoofer outputs are equipped with phase reverse and set-level features. The VHD5000 input is "Line Driver Ready"; it has an input signal impedance selector switch (10kOhm and 120Ohm) to match up low impedance signal source when driving long signal cables. In most cases, it would be advisable to use a VHD LD4 Line Driver in addition at the mixer outputs, to ensure that the line to the amplifier is driven correctly and the signal integrity maintained.
The VHD5000 also features long-distance eq, high-frequency recovery, and a signal generator. The amplifier is equipped with multiple network possibilities for easy remote control operation from networked amplifiers or website applications.
Applications
Specifically designed as the amplification and control for the 1xMid/Hi VHD5.0 part loudspeaker systems with adjacent VHD5000S in a rack mount modules
Large scale Portable PA
Fixed installations
Large clubs
Output Channels
Number of Channels: 1 x VHD5.0
High-Frequency Amplifier Specification
Type: Class AB Push-Pull low IM Mosfet design, transformer balanced output
Rated Continuous Power: 300W
Distortion: < 0.02%
Operating Bandwidth: 2kHz to 30kHz
High-Frequency Amplifier 2 Specification
Type: High Efficiency, High Power Bandwidth
Rated Continuous Power: 600W
Distortion: < 0.05%
Operating Bandwidth: 2kHz to 30kHz
Mid-Frequency Amplifier Specification
Type: High Efficiency, High Power Bandwidth
Rated Continuous Power: 1500W
Distortion: < 0.05%
Operating Bandwidth: 450Hz to 2kHz
Signal Input
Input Channels: XLR
Input Sensitivity: 1.55V RMS
Input Impedance: 10kΩ to 120Ω "Line driver ready."
Signal Output
Signal Output Channels: Through, Low, Sub A B, Fill, Insert
Speaker Output
Speaker Output: AP6
Features
Input Level Control: -20/ +3dB
Hi-Level Control: -6/ +4dB
Mid-Level Control: fixed
Low-Level Control: -6/ +6dB
Subwoofer Level Control: -20/ +10dB
Indicators: 5.7" sunlight-readable color display
Remote control: K-NET, Ethernet
Power Requirements
Power Connector: 1 x Neutrik PowerCon® 32A
Operating Voltage: 230V
Operating Voltage Range: 195 to 260V AC
Recommended Amperage: 20A 205V | 16A 230V
Soft Start: Yes
Protection: Thermal breaker
Cooling: Front-to-back, active
Physical Dimensions
Height: 177.8 mm (7.0"), 4HE
Width: 481.4 mm (18.95")
Depth: 495 mm (19.5")
Weight: 36 kg (80lbs)
Product code
KVV 987 334
