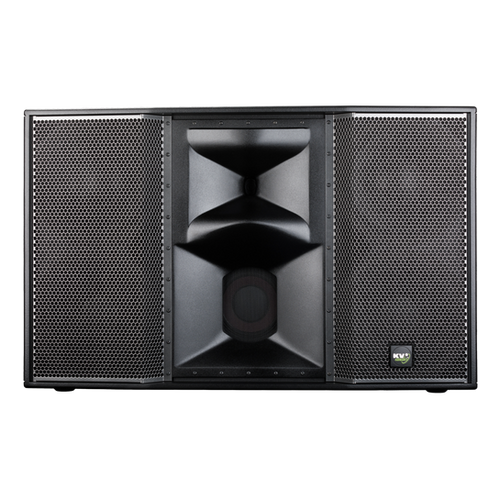

SL412
Wide dispersion Active Driven System
The SL412 is a slim, discreetly profiled cabinet with wide dispersion at high frequencies. The four twelve-inch speaker configuration provides controlled low-mid focus to reduce indoor reflection. Its slim design allows for simple wall mounting, suspension, ground stacking or internal wall fixing. The SL412 can be designed and supplied with custom colours, grill templates and logos, offering a flexible and truly designer integrated product. A single horizontal yoke assembly with multiple fixed angles and fixing locations provides a quick and cost effective solution for simple suspension.
Features
Slim, discreetly profiled wall mount cabinet.
Wide dispersion at high frequencies, controlled at low mids to reduce indoor reflections
134dB sustained output, 137dB peak with very high dynamic range
Simple wall mounting and suspension, ground stacking options and can be installed internally into walls and surfaces
These units can be designed and supplied with custom colors, grill templates, and logos, offering a flexible and truly designer-integrated product
A single horizontal yoke assembly with multiple fixed angles and fixing locations provides a quick and cost-effective solution for simple suspension options
The SL412i & SL2.15i are identical in performance and finish as the existing SL412 & SL2.15, except they do not incorporate the fixed handles for touring and presentation use. The ‘I’ version is designed for fixed installation use with the same existing mounting and flyware fixings.
Applications
Custom-designed as an aesthetically – easily integrated able high-performance unit for multi-tasking installation projects of recorded and live music performance
Fixed installation
Nightclubs
Multi-use venues
Large bars
System Acoustic Performance
Max SPL Long-term: 134dB
Max SPL Peak: 137dB
-3dB Response: 70Hz to 22kHz
-10dB Response: 58Hz to 30kHz
Crossover Point: 400Hz, 2.5kHz
High-Frequency Section
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 110° x 40°
Rotatable Horn: NO
High-Frequency Amplifier Requirement: 100W
Throat Exit Diameter / Diaphragm Size: 1.4" / 3"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
Mid Range Section
Acoustic Design: Horn Loaded
Mid Horn Coverage Horizontal / Vertical: 110° x 40°
Rotatable Horn: NO
Midrange Amplifier Requirement: 200W
Woofer Size / Voice Coil Diameter / Design: 8" / 3.0" / Trans Coil
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Low-Frequency Section
Acoustic Design: Front Loaded, Bass Reflex
Low-Frequency Amplifier Requirement: 1000W
Number of Drivers: 4
Woofer Size / Voice Coil Diameter / Design: 12" / 3" / Inside Outside
Magnet Type: Neodymium and Ferrite
Speaker Input
Speaker Input: AP6
Cabinet
Cabinet Material: Baltic birch
Handles: 2
Flyware: 20x M10 mounting points
Color: "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height: 670 mm (26.38")
Width: 1080 mm (42.52")
Depth: 300 mm (11.81")
Weight: 60 kg (132.28lbs)
Downloads
Product Code
KVV 987 273 - SL412
