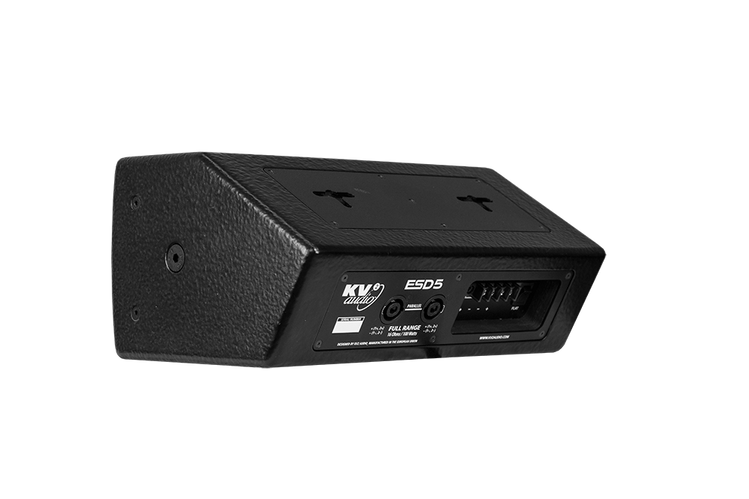

ESD5
2-way Passive speaker
The ESD5 is a very high-quality 2-way full-range compact, low-profile passive loudspeaker with performance that defies its size. Delivering exceptional clarity for speech and program reproduction, the ESD5 is perfect for discreet installations and audio-visual presentations where sound quality is paramount, but aesthetic dimensions are of equal importance. The ESD5’s high impedance capability means that up to sixteen units can be run from a single suitable quality stereo amplifier to provide a high-fidelity background program throughout a venue.
Features
Professional, Baltic birch construction with a wear-resistant polymer coating
115dB sustained output, 118dB peak with very high dynamic range
Compact cabinet design allows for use as front-fill, in-fill, or under-balcony applications
Wide dispersion 90° H x 90° V horn
Revolutionary new passive delay line
1 1/3" (34,4 mm) diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and ferrite magnet motor structure
5" woofer with Low Inductance Lightweight voice coil technology and motor structure dramatically increases force and lowers distortion
Proprietary design for simplified mounting integrates two M10 suspension points
Ceiling Mount Bracket (KVV 987 344) is included with the product.
Applications
Specifically designed as a super-discreet passive loudspeaker for the reproduction of recorded music and speech
Suitable in fixed installations as a full-range speaker or as a system with accompanying subwoofers
Excellent peripheral reinforcement for main KV2 systems
Fill-in speaker
Monitoring
Ceiling or under balcony mounting
System Acoustic Performance
Max SPL Long-term: 109dB
Max SPL Peak: 115dB
-3dB Response: 125Hz to 22kHz
-10dB Response: 74Hz to 28kHz
Recommended Power: 100W
Sensitivity: 89dB
Impedance: 16Ω
Crossover Point: 3.0kHz
High-Frequency Section
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 90° x 90°
Throat Exit Diameter / Diaphragm Size: 1" / 1.3”
Diaphragm Material: Titanium
Magnet Type: Ferrite
Protection: RMS Limiter
Low-Frequency Section
Acoustic Design: Closed box
Woofer Size / Voice Coil Diameter / Design: 5" / 1.75"
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Ferrite
Protection: RMS Limiter
Speaker Input
Speaker Input: 2 x Neutrik Speakon®, Terminal Block
Cabinet
Cabinet Material: Baltic birch
Color: Orange peeled Matt Black or any RAL
Physical Dimensions
Height: 150 mm (5.9")
Width: 316 mm (12.4")
Depth: 224.7 mm (8.84")
Weight: 7 kg (15.4lbs)
Downloads
Product code
KVV 987 340 - ESD5
