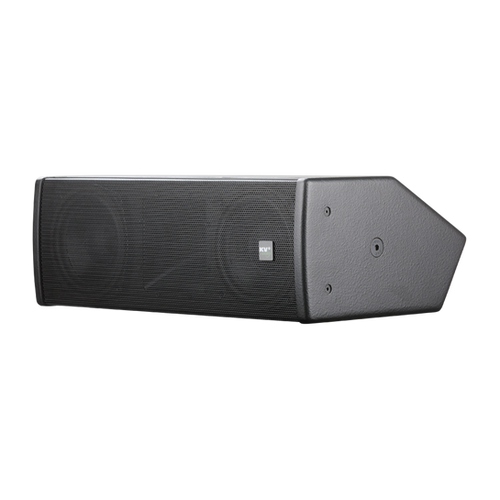

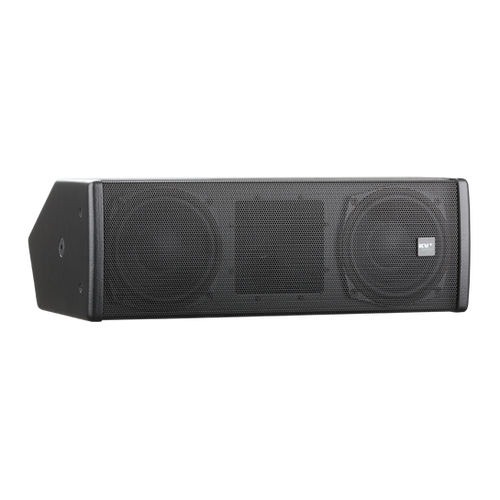

ESD25
2-way Passive speaker
The ESD25 is a very high-quality 2-way full-range compact low profile passive loudspeaker with increased lower bass extension than the smaller ESD5. Its opposing driver design assists with pattern control of the low-mid frequencies reducing reflections in reverberant spaces and improving intelligibility. Delivering exceptional clarity for speech and program reproduction the ESD25 is ideal for under-balcony or front-stage fill applications in theatres and performing arts spaces where transparent supplementation of the main system is required. As with the already widely acclaimed ESD5 the ESD25 is shaped to fit discreetly into these applications and comes with its own integral bracket for quick installation.
Features
Professional, Baltic birch construction with a wear-resistant polymer coating
120dB sustained output, 123dB peak with very high dynamic range
Compact cabinet design allows for use as front-fill, in-fill, or under-balcony applications
Wide dispersion 90° H x 90° V horn
Revolutionary new passive delay line
1/1.3" (34,4 mm) diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response, and ferrite magnet motor structure
Two 5" woofers with Low Inductance Lightweight voice coil technology and motor structure dramatically increase force and lowers distortion
Proprietary design for simplified mounting integrates two M10 suspension points
Applications
Specifically designed as a discreet passive loudspeaker for the reproduction of recorded music and speech
Suitable in fixed installations as a full-range speaker or as a system with accompanying subwoofers
Excellent peripheral reinforcement for main KV2 systems
Fill-in speaker
Monitoring
Ceiling or under balcony mounting
System Acoustic Performance
Max SPL Long-term: 118dB
Max SPL Peak: 124dB
-3dB Response: 120Hz to 22kHz
-10dB Response: 72Hz to 28kHz
Recommended Power: 200W
Sensitivity: 92dB
Impedance: 8Ω
Crossover Point: 3.0kHz
High-Frequency Section
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 90° x 90°
Throat Exit Diameter / Diaphragm Size: 1 / 1.3"
Diaphragm Material: Titanium
Magnet Type: Ferrite
Protection: RMS Limiter
Low-Frequency Section
Acoustic Design: Closed box
Number of Drivers: 2
Woofer Size / Voice Coil Diameter / Design: 5" / 1.75"
Magnet Type: Ferrite
Diaphragm Material: Epoxy Reinforced Cellulose
Protection: RMS Limiter
Speaker Input
Speaker Input: 2 x Neutrik Speakon®, Terminal Block
Cabinet
Cabinet Material: Baltic birch
Color: Orange peeled Matt Black or any RAL
Physical Dimensions
Height: 150 mm (5,9")
Width: 442 mm (17.4”)
Depth: 260 mm (10.24”)
Weight: 9.6 kg (21.2lbs)
Product code
KVV 987 368 ESD25
