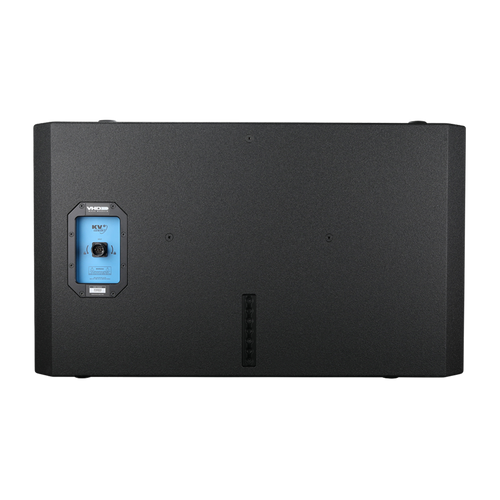

VHD8.10
Low-Mid Module
When multiple low-mid drivers are arrayed on a single axis, they sum up providing a considerable increase in the amount of low-mid energy present and available in the 200Hz to 500Hz range. A lot more energy is needed in this area than in the higher frequency ranges, so this summing effect helps deliver headroom in the system and keeps the overall sound balanced. To provide the required energy in the low mid, needed to cover very large audiences, KV2 developed the VHD8.10 Low Mid Expansion Box. This enclosure carries a further 8 front‑loaded ten-inch speakers, and 3 of these cabinets are added to each VHD5. 0. This provides a total of 32 ten-inch speakers giving the extra headroom needed in the low-mid band and extended projection of these frequencies over distance.
Applications
Designed as a dedicated low-mid enclosure to accompany the VHD5.0 mid-high module as part of the VHD5 system
Medium to large concert venues
Fixed installation
Outdoor events
System Acoustic Performance
Max SPL Long-term: 135dB
Max SPL Peak: 138dB
-3dB Response: 45Hz to 400Hz (45Hz to 1100Hz when used standalone)
-10dB Response: 45Hz to 400Hz (45Hz to 4200Hz when used standalone)
Sensitivity: 104dB
Impedance: 4Ω
Crossover Point: 400Hz
Mid Bass Section
Acoustic Design: Front Loaded - Bass Reflex
Mid-bass Amplifier Requirement: VHD5000S
Woofer Size / Voice Coil Diameter / Design: 8 x 10” / 2"
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium / Ferrite
Cabinet
Cabinet Material: Baltic birch
Handles: 4
Color: Black (wear-resistant polymer coating)
Physical Dimensions
Height: 640mm (25.20")
Width: 1110mm (43.7")
Depth: 500mm (19.69")
Weight: 78 kg (172 lbs)
Product code
KVV 987 343
