VHD5.0
Mid-High Module

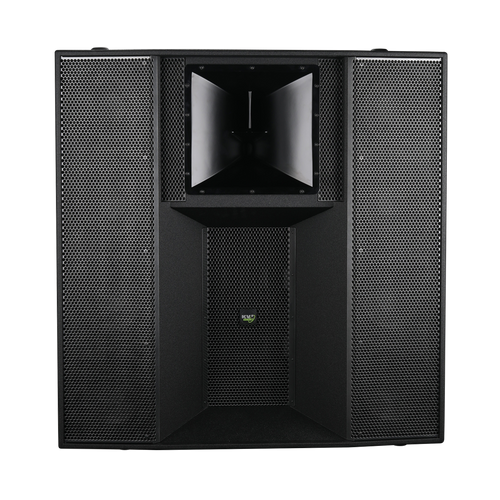

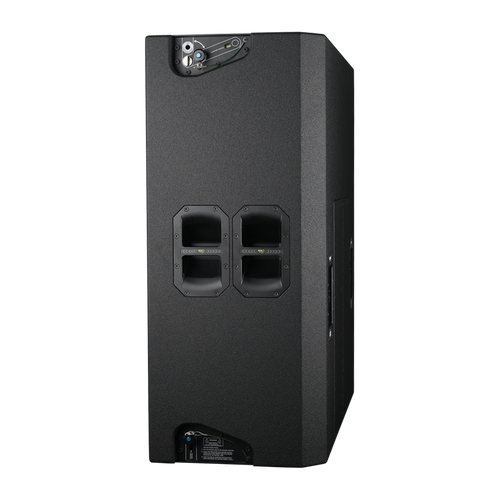

The VHD5.0 is a three‑way enclosure handling low mids, mids, and highs over a frequency range from 45Hz through to 20kHz. It incorporates eight front‑loaded ten-inch low mid drivers, six horn‑loaded eight-inch mid-range drivers, and three 3“ NVPD (Nitrate Vapour Particle Deposition) Titanium compression drivers on a custom-designed, manifold horn assembly with summing waveguide. With the capacity to run full range down to 45Hz, the VHD5.0 is usually crossed over at 70Hz to the VHD4.21 Active Sub Bass Modules. Both the VHD5.0 and VHD8.10 cabinets incorporate very simple-to-use integrated fly ware that links cabinets together quickly and easily.
Applications
Designed as an extremely high output and performance mid-hi unit as part of the VHD5 Constant Power Point Source systems for large arenas and stadiums
Medium to large concert venues
Hire and Production
Large Clubs and Arenas
System Acoustic Performance
Max SPL Long-term:147dB (with VHD8.10)
Max SPL Peak: 150dB (with VHD8.10)
-3dB Response: 50Hz to 20kHz (with VHD8.10)
-10dB Response: 45Hz to 22kHz (with VHD8.10)
Full Range mode -3dB Response: 45Hz to 20kHz (with VHD8.10)
Crossover Point: 70Hz, 400Hz, 2.0kHz (with VHD8.10)
High Frequency Section
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 80° x 30°
High-Frequency Amplifier Requirement: VHD5000
Throat Exit Diameter / Diaphragm Size: 3x 1.4” / 3.0”
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
Mid Range Section
Acoustic Design: Horn Loaded
Mid Horn Coverage Horizontal / Vertical: 80° x 30°
Midrange Amplifier Requirement: VHD5000
Woofer Size / Voice Coil Diameter / Design: 6 x 8” / 3.0” / Trans Coil
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Low Mid Section
Acoustic Design: Front Loaded
Low Mid Amplifier Requirement: VHD5000
Woofer Size / Voice Coil Diameter / Design: 8 x 10” / 3.0”
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Cabinet
Cabinet Material: Baltic birch
Handles: 6
Color: Black (wear-resistant polymer coating)
Physical Dimensions
Height: 1125mm (44.29")
Width: 1110mm (43.7")
Depth: 500mm (19.69")
Weight: 151kg (332.2lbs)
Product code
KVV 987 342
